上一篇文章中kubernetes系列教程(七)深入玩转pod调度介绍了kubernetes中Pod的调度机制,通过实战演练介绍Pod调度到node的几种方法:1. 通过nodeName固定选择调度,2. 通过nodeSelector定向选择调度,3. 通过node Affinity亲和力调度,接下来介绍kubernetes系列教程pod的健康检查机制。

1. 健康检查

1.1 健康检查概述

应用在运行过程中难免会出现错误,如程序异常,软件异常,硬件故障,网络故障等,kubernetes提供Health Check健康检查机制,当发现应用异常时会自动重启容器,将应用从service服务中剔除,保障应用的高可用性。k8s定义了三种探针Probe:

  • readiness probes 准备就绪检查,通过readiness是否准备接受流量,准备完毕加入到endpoint,否则剔除
  • liveness probes 在线检查机制,检查应用是否可用,如死锁,无法响应,异常时会自动重启容器
  • startup probes 启动检查机制,应用一些启动缓慢的业务,避免业务长时间启动而被前面的探针kill掉

每种探测机制支持三种健康检查方法,分别是命令行exec,httpGet和tcpSocket,其中exec通用性最强,适用与大部分场景,tcpSocket适用于TCP业务,httpGet适用于web业务。

  • exec 提供命令或shell的检测,在容器中执行命令检查,返回码为0健康,非0异常
  • httpGet http协议探测,在容器中发送http请求,根据http返回码判断业务健康情况
  • tcpSocket tcp协议探测,向容器发送tcp建立连接,能建立则说明正常

每种探测方法能支持几个相同的检查参数,用于设置控制检查时间:

  • initialDelaySeconds 初始第一次探测间隔,用于应用启动的时间,防止应用还没启动而健康检查失败
  • periodSeconds 检查间隔,多久执行probe检查,默认为10s
  • timeoutSeconds 检查超时时长,探测应用timeout后为失败
  • successThreshold 成功探测阈值,表示探测多少次为健康正常,默认探测1次

1.2 exec命令行健康检查

许多应用程序运行过程中无法检测到内部故障,如死锁,出现故障时通过重启业务可以恢复,kubernetes提供liveness在线健康检查机制,我们以exec为例,创建一个容器启动过程中创建一个文件/tmp/liveness-probe.log,10s后将其删除,定义liveness健康检查机制在容器中执行命令ls -l /tmp/liveness-probe.log,通过文件的返回码判断健康状态,如果返回码非0,暂停20s后kubelet会自动将该容器重启。

  1. 定义一个容器,启动时创建一个文件,健康检查时ls -l /tmp/liveness-probe.log返回码为0,健康检查正常,10s后将其删除,返回码为非0,健康检查异常
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
[root@node-1 demo]# cat centos-exec-liveness-probe.yaml
apiVersion: v1
kind: Pod
metadata:
  name: exec-liveness-probe
  annotations:
    kubernetes.io/description: "exec-liveness-probe"
spec:
  containers:
  - name: exec-liveness-probe
    image: centos:latest
    imagePullPolicy: IfNotPresent
    args:    #容器启动命令生命周期为30s
    - /bin/sh
    - -c
    - touch /tmp/liveness-probe.log && sleep 10 && rm -f /tmp/liveness-probe.log && sleep 20
    livenessProbe:
      exec:  #健康检查机制通过ls -l /tmp/liveness-probe.log返回码判断容器的健康状态
        command:
        - ls
        - l
        - /tmp/liveness-probe.log
      initialDelaySeconds: 1
      periodSeconds: 5
      timeoutSeconds: 1
  1. 应用配置生成容器
1
2
[root@node-1 demo]# kubectl apply -f centos-exec-liveness-probe.yaml
pod/exec-liveness-probe created
  1. 查看容器的event日志,容器启动后,10s以内容器状态正常,11s开始执行liveness健康检查,检查异常,触发容器重启
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
[root@node-1 demo]# kubectl describe pods exec-liveness-probe | tail
Events:
  Type     Reason     Age                From               Message
  ----     ------     ----               ----               -------
  Normal   Scheduled  28s                default-scheduler  Successfully assigned default/exec-liveness-probe to node-3
  Normal   Pulled     27s                kubelet, node-3    Container image "centos:latest" already present on machine
  Normal   Created    27s                kubelet, node-3    Created container exec-liveness-probe
  Normal   Started    27s                kubelet, node-3    Started container exec-liveness-probe
  #容器已启动
  Warning  Unhealthy  20s (x2 over 25s)  kubelet, node-3    Liveness probe failed: /tmp/liveness-probe.log
ls: cannot access l: No such file or directory #执行健康检查检查异常
  Warning  Unhealthy  15s  kubelet, node-3  Liveness probe failed: ls: cannot access l: No such file or directory
ls: cannot access /tmp/liveness-probe.log: No such file or directory
  Normal  Killing  15s  kubelet, node-3  Container exec-liveness-probe failed liveness probe, will be restarted
  #重启容器
  1. 查看容器重启次数,容器不停的执行,重启次数会响应增加,可以看到RESTARTS的次数在持续增加
1
2
3
[root@node-1 demo]# kubectl get pods exec-liveness-probe
NAME                  READY   STATUS    RESTARTS   AGE
exec-liveness-probe   1/1     Running   6          5m19s

1.3 httpGet健康检查

  1. httpGet probe主要主要用于web场景,通过向容器发送http请求,根据返回码判断容器的健康状态,返回码小于4xx即表示健康,如下定义一个nginx应用,通过探测http://:port/index.html的方式判断健康状态
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
[root@node-1 demo]# cat nginx-httpGet-liveness-readiness.yaml
apiVersion: v1
kind: Pod
metadata:
  name: nginx-httpget-livess-readiness-probe
  annotations:
    kubernetes.io/description: "nginx-httpGet-livess-readiness-probe"
spec:
  containers:
  - name: nginx-httpget-livess-readiness-probe
    image: nginx:latest
    ports:
    - name: http-80-port
      protocol: TCP
      containerPort: 80
    livenessProbe:   #健康检查机制通过httpGet实现实现检查
      httpGet:
        port: 80
        scheme: HTTP
        path: /index.html
      initialDelaySeconds: 3
      periodSeconds: 10
      timeoutSeconds: 3
  1. 生成pod并查看健康状态
1
2
3
4
5
[root@node-1 demo]# kubectl apply -f nginx-httpGet-liveness-readiness.yaml
pod/nginx-httpget-livess-readiness-probe created
[root@node-1 demo]# kubectl get pods nginx-httpget-livess-readiness-probe
NAME                                   READY   STATUS    RESTARTS   AGE
nginx-httpget-livess-readiness-probe   1/1     Running   0          6s
  1. 模拟故障,将pod中的path文件所属文件删除,此时发送http请求时会健康检查异常,会触发容器自动重启
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
查询pod所属的节点
[root@node-1 demo]# kubectl get pods nginx-httpget-livess-readiness-probe -o wide
NAME                                   READY   STATUS    RESTARTS   AGE    IP            NODE     NOMINATED NODE   READINESS GATES
nginx-httpget-livess-readiness-probe   1/1     Running   1          3m9s   10.244.2.19   node-3   <none>           <none>

登录到pod中将文件删除
[root@node-1 demo]# kubectl exec -it nginx-httpget-livess-readiness-probe /bin/bash
root@nginx-httpget-livess-readiness-probe:/# ls -l /usr/share/nginx/html/index.html
-rw-r--r-- 1 root root 612 Sep 24 14:49 /usr/share/nginx/html/index.html
root@nginx-httpget-livess-readiness-probe:/# rm -f /usr/share/nginx/html/index.html
  1. 再次查看pod的列表,此时会RESTART的次数会增加1,表示重启重启过一次,AGE则多久前重启的时间
1
2
3
[root@node-1 demo]# kubectl get pods nginx-httpget-livess-readiness-probe
NAME                                   READY   STATUS    RESTARTS   AGE
nginx-httpget-livess-readiness-probe   1/1     Running   1          4m22s
  1. 查看pod的详情,观察容器重启的情况,通过Liveness 检查容器出现404错误,触发重启。
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
[root@node-1 demo]# kubectl describe pods nginx-httpget-livess-readiness-probe | tail
Events:
  Type     Reason     Age                    From               Message
  ----     ------     ----                   ----               -------
  Normal   Scheduled  5m45s                  default-scheduler  Successfully assigned default/nginx-httpget-livess-readiness-probe to node-3
  Normal   Pulling    3m29s (x2 over 5m45s)  kubelet, node-3    Pulling image "nginx:latest"
  Warning  Unhealthy  3m29s (x3 over 3m49s)  kubelet, node-3    Liveness probe failed: HTTP probe failed with statuscode: 404
  Normal   Killing    3m29s                  kubelet, node-3    Container nginx-httpget-livess-readiness-probe failed liveness probe, will be restarted
  Normal   Pulled     3m25s (x2 over 5m41s)  kubelet, node-3    Successfully pulled image "nginx:latest"
  Normal   Created    3m25s (x2 over 5m40s)  kubelet, node-3    Created container nginx-httpget-livess-readiness-probe
  Normal   Started    3m25s (x2 over 5m40s)  kubelet, node-3    Started container nginx-httpget-livess-readiness-probe

1.4 tcpSocket健康检查

  1. tcpsocket健康检查适用于TCP业务,通过向指定容器建立一个tcp连接,可以建立连接则健康检查正常,否则健康检查异常,依旧以nignx为例使用tcp健康检查机制,探测80端口的连通性
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
[root@node-1 demo]# cat nginx-tcp-liveness.yaml
apiVersion: v1
kind: Pod
metadata:
  name: nginx-tcp-liveness-probe
  annotations:
    kubernetes.io/description: "nginx-tcp-liveness-probe"
spec:
  containers:
  - name: nginx-tcp-liveness-probe
    image: nginx:latest
    ports:
    - name: http-80-port
      protocol: TCP
      containerPort: 80
    livenessProbe:  #健康检查为tcpSocket探测TCP 80端口
      tcpSocket:
       port: 80
      initialDelaySeconds: 3
      periodSeconds: 10
      timeoutSeconds: 3
  1. 应用配置创建容器
1
2
3
4
5
6
[root@node-1 demo]# kubectl apply -f nginx-tcp-liveness.yaml
pod/nginx-tcp-liveness-probe created

[root@node-1 demo]# kubectl get pods nginx-tcp-liveness-probe
NAME                       READY   STATUS    RESTARTS   AGE
nginx-tcp-liveness-probe   1/1     Running   0          6s
  1. 模拟故障,获取pod所属节点,登录到pod中,安装查看进程工具htop
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
获取pod所在node
[root@node-1 demo]# kubectl get pods nginx-tcp-liveness-probe -o wide
NAME                       READY   STATUS    RESTARTS   AGE   IP            NODE     NOMINATED NODE   READINESS GATES
nginx-tcp-liveness-probe   1/1     Running   0          99s   10.244.2.20   node-3   <none>           <none>

登录到pod中
[root@node-1 demo]# kubectl exec -it nginx-httpget-livess-readiness-probe /bin/bash

#执行apt-get update更新和apt-get install htop安装工具
root@nginx-httpget-livess-readiness-probe:/# apt-get update
Get:1 http://cdn-fastly.deb.debian.org/debian buster InRelease [122 kB]
Get:2 http://security-cdn.debian.org/debian-security buster/updates InRelease [39.1 kB]
Get:3 http://cdn-fastly.deb.debian.org/debian buster-updates InRelease [49.3 kB]
Get:4 http://security-cdn.debian.org/debian-security buster/updates/main amd64 Packages [95.7 kB]
Get:5 http://cdn-fastly.deb.debian.org/debian buster/main amd64 Packages [7899 kB]
Get:6 http://cdn-fastly.deb.debian.org/debian buster-updates/main amd64 Packages [5792 B]
Fetched 8210 kB in 3s (3094 kB/s)
Reading package lists... Done
root@nginx-httpget-livess-readiness-probe:/# apt-get install htop
Reading package lists... Done
Building dependency tree
Reading state information... Done
Suggested packages:
  lsof strace
The following NEW packages will be installed:
  htop
0 upgraded, 1 newly installed, 0 to remove and 5 not upgraded.
Need to get 92.8 kB of archives.
After this operation, 230 kB of additional disk space will be used.
Get:1 http://cdn-fastly.deb.debian.org/debian buster/main amd64 htop amd64 2.2.0-1+b1 [92.8 kB]
Fetched 92.8 kB in 0s (221 kB/s)
debconf: delaying package configuration, since apt-utils is not installed
Selecting previously unselected package htop.
(Reading database ... 7203 files and directories currently installed.)
Preparing to unpack .../htop_2.2.0-1+b1_amd64.deb ...
Unpacking htop (2.2.0-1+b1) ...
Setting up htop (2.2.0-1+b1) ...

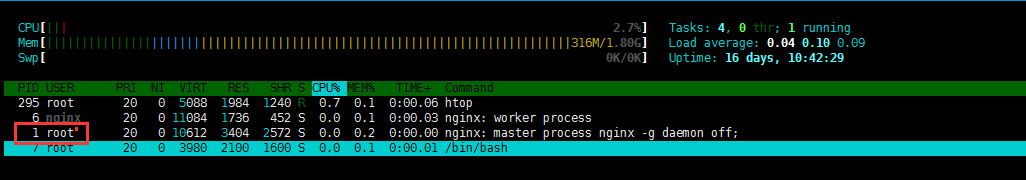

  1. 运行htop查看进程,容器进程通常为1

htop运行结果

  1. kill掉进程观察容器状态,观察RESTART次数重启次数增加
1
2
3
4
5
6
7
root@nginx-httpget-livess-readiness-probe:/# kill 1
root@nginx-httpget-livess-readiness-probe:/# command terminated with exit code 137

查看pod情况
[root@node-1 demo]# kubectl get pods nginx-tcp-liveness-probe
NAME                       READY   STATUS    RESTARTS   AGE
nginx-tcp-liveness-probe   1/1     Running   1          13m
  1. 查看容器详情,发现容器有重启的记录
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
[root@node-1 demo]# kubectl describe pods nginx-tcp-liveness-probe | tail
Tolerations:     node.kubernetes.io/not-ready:NoExecute for 300s
                 node.kubernetes.io/unreachable:NoExecute for 300s
Events:
  Type    Reason     Age                From               Message
  ----    ------     ----               ----               -------
  Normal  Scheduled  14m                default-scheduler  Successfully assigned default/nginx-tcp-liveness-probe to node-3
  Normal  Pulling    44s (x2 over 14m)  kubelet, node-3    Pulling image "nginx:latest"
  Normal  Pulled     40s (x2 over 14m)  kubelet, node-3    Successfully pulled image "nginx:latest"
  Normal  Created    40s (x2 over 14m)  kubelet, node-3    Created container nginx-tcp-liveness-probe
  Normal  Started    40s (x2 over 14m)  kubelet, node-3    Started container nginx-tcp-liveness-probe

1.5 readiness健康就绪

就绪检查用于应用接入到service的场景,用于判断应用是否已经就绪完毕,即是否可以接受外部转发的流量,健康检查正常则将pod加入到service的endpoints中,健康检查异常则从service的endpoints中删除,避免影响业务的访问。

  1. 创建一个pod,使用httpGet的健康检查机制,定义readiness就绪检查探针检查路径/test.html
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
[root@node-1 demo]# cat httpget-liveness-readiness-probe.yaml
apiVersion: v1
kind: Pod
metadata:
  name: nginx-tcp-liveness-probe
  annotations:
    kubernetes.io/description: "nginx-tcp-liveness-probe"
  labels:  #需要定义labels后面定义的service需要调用
    app: nginx
spec:
  containers:
  - name: nginx-tcp-liveness-probe
    image: nginx:latest
    ports:
    - name: http-80-port
      protocol: TCP
      containerPort: 80
    livenessProbe:  #存活检查探针
      httpGet:
        port: 80
        path: /index.html
        scheme: HTTP
      initialDelaySeconds: 3
      periodSeconds: 10
      timeoutSeconds: 3
    readinessProbe:  #就绪检查探针
      httpGet:
        port: 80
        path: /test.html
        scheme: HTTP
      initialDelaySeconds: 3
      periodSeconds: 10
      timeoutSeconds: 3
  1. 定义一个service,将上述的pod加入到service中,注意使用上述定义的labels,app=nginx
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
[root@node-1 demo]# cat nginx-service.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app: nginx
  name: nginx-service
spec:
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: 80
  selector:
    app: nginx
  type: ClusterIP
  1. 生成配置
1
2
3
4
[root@node-1 demo]# kubectl apply -f httpget-liveness-readiness-probe.yaml
pod/nginx-tcp-liveness-probe created
[root@node-1 demo]# kubectl apply -f nginx-service.yaml
service/nginx-service created
  1. 此时pod状态正常,此时readiness健康检查异常
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
[root@node-1 ~]# kubectl get pods nginx-httpget-livess-readiness-probe
NAME                                   READY   STATUS    RESTARTS   AGE
nginx-httpget-livess-readiness-probe   1/1     Running   2          153m

#readiness健康检查异常404报错最后一行
[root@node-1 demo]# kubectl describe pods nginx-tcp-liveness-probe | tail
                 node.kubernetes.io/unreachable:NoExecute for 300s
Events:
  Type     Reason     Age                 From               Message
  ----     ------     ----                ----               -------
  Normal   Scheduled  2m6s                default-scheduler  Successfully assigned default/nginx-tcp-liveness-probe to node-3
  Normal   Pulling    2m5s                kubelet, node-3    Pulling image "nginx:latest"
  Normal   Pulled     2m1s                kubelet, node-3    Successfully pulled image "nginx:latest"
  Normal   Created    2m1s                kubelet, node-3    Created container nginx-tcp-liveness-probe
  Normal   Started    2m1s                kubelet, node-3    Started container nginx-tcp-liveness-probe
  Warning  Unhealthy  2s (x12 over 112s)  kubelet, node-3    Readiness probe failed: HTTP probe failed with statuscode: 404
  1. 查看services的endpoints,发现此时endpoints为空,因为readiness就绪检查异常,kubelet认为此时pod并未就绪,因此并未将其加入到endpoints中。
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
[root@node-1 ~]# kubectl describe services nginx-service
Name:              nginx-service
Namespace:         default
Labels:            app=nginx
Annotations:       kubectl.kubernetes.io/last-applied-configuration:
                     {"apiVersion":"v1","kind":"Service","metadata":{"annotations":{},"labels":{"app":"nginx"},"name":"nginx-service","namespace":"default"},"s...
Selector:          app=nginx
Type:              ClusterIP
IP:                10.110.54.40
Port:              http  80/TCP
TargetPort:        80/TCP
Endpoints:         <none> #Endpoints对象为空
Session Affinity:  None
Events:            <none>

#endpoints状态
[root@node-1 demo]# kubectl describe endpoints nginx-service
Name:         nginx-service
Namespace:    default
Labels:       app=nginx
Annotations:  endpoints.kubernetes.io/last-change-trigger-time: 2019-09-30T14:27:37Z
Subsets:
  Addresses:          <none>
  NotReadyAddresses:  10.244.2.22  #pod处于NotReady状态
  Ports:
    Name  Port  Protocol
    ----  ----  --------
    http  80    TCP

Events:  <none>
  1. 进入到pod中手动创建网站文件,使readiness健康检查正常
1
2
[root@node-1 ~]# kubectl exec -it nginx-httpget-livess-readiness-probe /bin/bash
root@nginx-httpget-livess-readiness-probe:/# echo "readiness probe demo" >/usr/share/nginx/html/test.html
  1. 此时readiness健康检查正常,kubelet检测到pod就绪会将其加入到endpoints中
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
健康检查正常
[root@node-1 demo]# curl http://10.244.2.22/test.html

查看endpoints情况
readines[root@node-1 demo]# kubectl describe endpoints nginx-service
Name:         nginx-service
Namespace:    default
Labels:       app=nginx
Annotations:  endpoints.kubernetes.io/last-change-trigger-time: 2019-09-30T14:33:01Z
Subsets:
  Addresses:          10.244.2.22 #就绪地址已从NotReady中提出加入到正常的Address列表中
  NotReadyAddresses:  <none>
  Ports:
    Name  Port  Protocol
    ----  ----  --------
    http  80    TCP

查看service状态
[root@node-1 demo]# kubectl describe services nginx-service
Name:              nginx-service
Namespace:         default
Labels:            app=nginx
Annotations:       kubectl.kubernetes.io/last-applied-configuration:
                     {"apiVersion":"v1","kind":"Service","metadata":{"annotations":{},"labels":{"app":"nginx"},"name":"nginx-service","namespace":"default"},"s...
Selector:          app=nginx
Type:              ClusterIP
IP:                10.110.54.40
Port:              http  80/TCP
TargetPort:        80/TCP
Endpoints:         10.244.2.22:80 #已和endpoints关联
Session Affinity:  None
Events:            <none>
  1. 同理,如果此时容器的健康检查异常,kubelet会自动将其动endpoint中
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
删除站点信息使健康检查异常
[root@node-1 demo]# kubectl exec -it nginx-tcp-liveness-probe  /bin/bash
root@nginx-tcp-liveness-probe:/# rm -f /usr/share/nginx/html/test.html

查看pod健康检查event日志
[root@node-1 demo]# kubectl get pods nginx-tcp-liveness-probe
NAME                       READY   STATUS    RESTARTS   AGE
nginx-tcp-liveness-probe   0/1     Running   0          11m
[root@node-1 demo]# kubectl describe pods nginx-tcp-liveness-probe | tail
                 node.kubernetes.io/unreachable:NoExecute for 300s
Events:
  Type     Reason     Age                  From               Message
  ----     ------     ----                 ----               -------
  Normal   Scheduled  12m                  default-scheduler  Successfully assigned default/nginx-tcp-liveness-probe to node-3
  Normal   Pulling    12m                  kubelet, node-3    Pulling image "nginx:latest"
  Normal   Pulled     11m                  kubelet, node-3    Successfully pulled image "nginx:latest"
  Normal   Created    11m                  kubelet, node-3    Created container nginx-tcp-liveness-probe
  Normal   Started    11m                  kubelet, node-3    Started container nginx-tcp-liveness-probe
  Warning  Unhealthy  119s (x32 over 11m)  kubelet, node-3    Readiness probe failed: HTTP probe failed with statuscode: 404

查看endpoints
[root@node-1 demo]# kubectl describe endpoints nginx-service
Name:         nginx-service
Namespace:    default
Labels:       app=nginx
Annotations:  endpoints.kubernetes.io/last-change-trigger-time: 2019-09-30T14:38:01Z
Subsets:
  Addresses:          <none>
  NotReadyAddresses:  10.244.2.22 #健康检查异常此时加入到NotReady状态
  Ports:
    Name  Port  Protocol
    ----  ----  --------
    http  80    TCP

Events:  <none>

查看service状态此时endpoints为空
[root@node-1 demo]# kubectl describe services nginx-service
Name:              nginx-service
Namespace:         default
Labels:            app=nginx
Annotations:       kubectl.kubernetes.io/last-applied-configuration:
                     {"apiVersion":"v1","kind":"Service","metadata":{"annotations":{},"labels":{"app":"nginx"},"name":"nginx-service","namespace":"default"},"s...
Selector:          app=nginx
Type:              ClusterIP
IP:                10.110.54.40
Port:              http  80/TCP
TargetPort:        80/TCP
Endpoints:         #为空
Session Affinity:  None
Events:            <none>

1.6 TKE设置健康检查

TKE中可以设定应用的健康检查机制,健康检查机制包含在不同的Workload中,可以通过模板生成健康监测机制,定义过程中可以选择高级选项,默认健康检查机制是关闭状态,包含前面介绍的两种探针:存活探针livenessProbe和就绪探针readinessProbe,根据需要分别开启

TKE健康检查

开启探针之后进入设置健康检查,支持上述介绍的三种方法:执行命令检查、TCP端口检查,HTTP请求检查

TKE健康检查方法

选择不同的检查方法填写不同的参数即可,如启动间隔,检查间隔,响应超时,等参数,以HTTP请求检查方法为例:

TKE http健康检查方法

设置完成后创建workload时候会自动生成yaml文件,以刚创建的deployment为例,生成健康检查yaml文件内容如下:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
apiVersion: apps/v1beta2
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: "1"
    description: tke-health-check-demo
  creationTimestamp: "2019-09-30T12:28:42Z"
  generation: 1
  labels:
    k8s-app: tke-health-check-demo
    qcloud-app: tke-health-check-demo
  name: tke-health-check-demo
  namespace: default
  resourceVersion: "2060365354"
  selfLink: /apis/apps/v1beta2/namespaces/default/deployments/tke-health-check-demo
  uid: d6cf1f25-e37d-11e9-87fd-567eb17a3218
spec:
  minReadySeconds: 10
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: tke-health-check-demo
      qcloud-app: tke-health-check-demo
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 0
    type: RollingUpdate
  template:
    metadata:
      creationTimestamp: null
      labels:
        k8s-app: tke-health-check-demo
        qcloud-app: tke-health-check-demo
    spec:
      containers:
      - image: nginx:latest
        imagePullPolicy: Always
        livenessProbe:   #通过模板生成的健康检查机制
          failureThreshold: 1
          httpGet:
            path: /
            port: 80
            scheme: HTTP
          periodSeconds: 3
          successThreshold: 1
          timeoutSeconds: 2
        name: tke-health-check-demo
        resources:
          limits:
            cpu: 500m
            memory: 1Gi
          requests:
            cpu: 250m
            memory: 256Mi
        securityContext:
          privileged: false
          procMount: Default
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
      dnsPolicy: ClusterFirst
      imagePullSecrets:
      - name: qcloudregistrykey
      - name: tencenthubkey
      restartPolicy: Always
      schedulerName: default-scheduler
      securityContext: {}
      terminationGracePeriodSeconds: 30

写在最后

本章介绍kubernetes中健康检查两种Probe:livenessProbe和readinessProbe,livenessProbe主要用于存活检查,检查容器内部运行状态,readiness主要用于就绪检查,是否可以接受流量,通常需要和service的endpoints结合,当就绪准备妥当时加入到endpoints中,当就绪异常时从endpoints中删除,从而实现了services的健康检查和服务探测机制。对于Probe机制提供了三种检测的方法,分别适用于不同的场景:1. exec命令行,通过命令或shell实现健康检查,2. tcpSocket通过TCP协议探测端口,建立tcp连接,3. httpGet通过建立http请求探测,读者可多实操掌握其用法。

附录

健康检查:https://kubernetes.io/docs/tasks/configure-pod-container/configure-liveness-readiness-startup-probes/

TKE健康检查设置方法:https://cloud.tencent.com/document/product/457/32815

『 转载 』该文章来源于网络,侵删。
